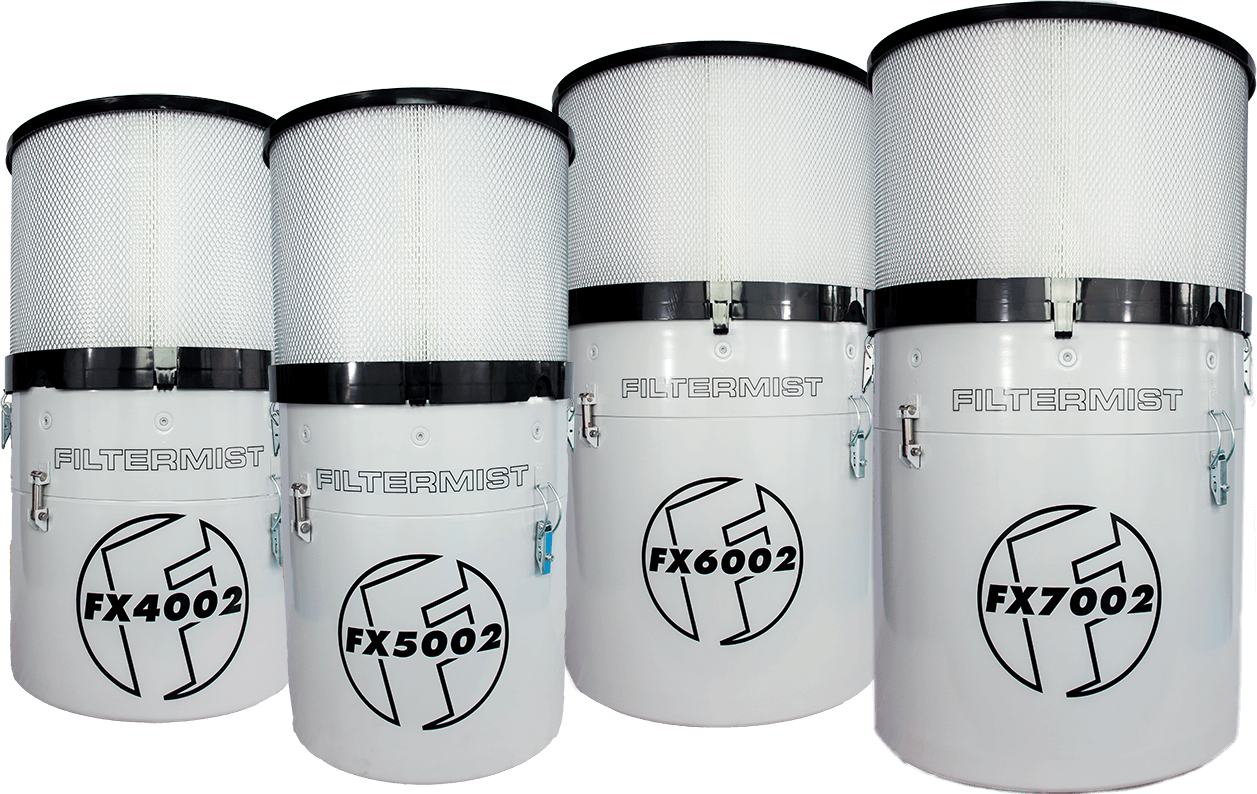

FX Series Oil Mist Filters | Compact

Compact | Quiet | Efficient

The industry-proven solution for extracting oil mist from manufacturing environments, trusted by world leading manufacturers since 1969.

Multiple Mounting Options

FX oil mist filters are available with a number of mounting options including floor stands, and machine mounts.

Mounting Options

Worldwide Compatibility

Filtermist oil mist filter units are used in more than 60 countries worldwide and are designed to operate efficiently on a wide range of industrial power supplies.

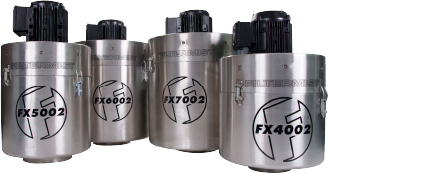

Stainless Steel

Filtermist FX and S series oil mist filters are available in standard mild steel construction and also stainless steel versions for use in hazardous or corrosive environments.

Tech Data

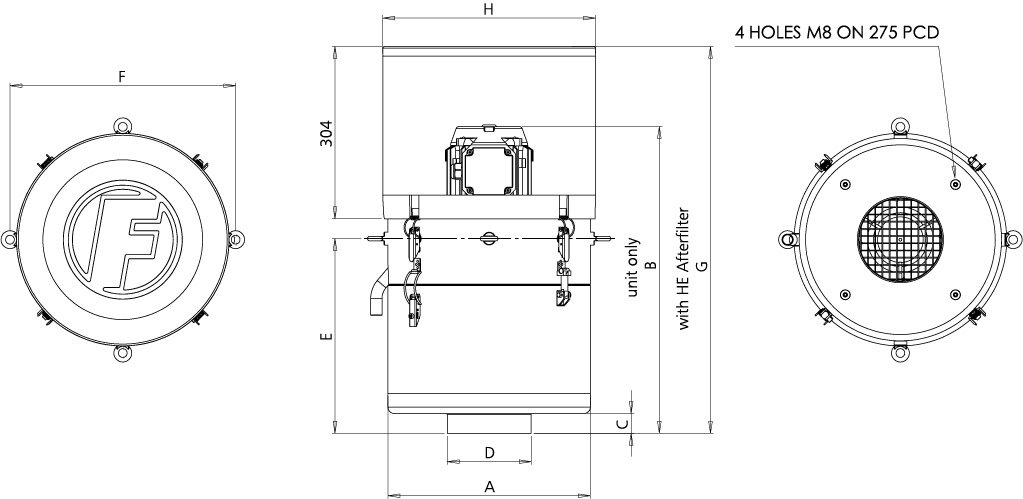

Model	Airflow m³/hr	Motor ¹		A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	Weight ² kg	Noise ³ dBA
FX4002	1250 @ 50Hz 1500 @ 60Hz	1.1kW 50Hz 200v, 220v, 380v, 400v	1.1kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v	357	532	35	148	309	398	682.50	375	23	70
FX5002	1675 @ 50Hz 2000 @ 60Hz	1.5kW 50Hz 200v, 220v, 380v, 400v	1.5kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v	357	613	35	198	378	398	751.50	375	27.5	71
FX6002	2000 @ 50Hz 2400 @ 60Hz	2.2kW 50Hz 200v, 220v, 380v, 400v	2.2kW 60Hz 220v, 230v, 440v, 460v, 480v	438	642	35	198	432	485	805.50	456	37	73
FX7002	2750 @ 50Hz	2.2kW 50Hz 200v, 220v, 380v, 400v	not available	438	642	35	198	432	485	805.50	456	37	73

¹ Motors to be used on specified voltages only.
² +/- 5% tolerance
³ Results are in test conditions ± 3% tolerance. Local variations and in use conditions may affect readings.

Accessories

All oil mist filters have a number of accessories available including afterfilters to purify the exhaust air and fishtails for close up collection on open machines.
